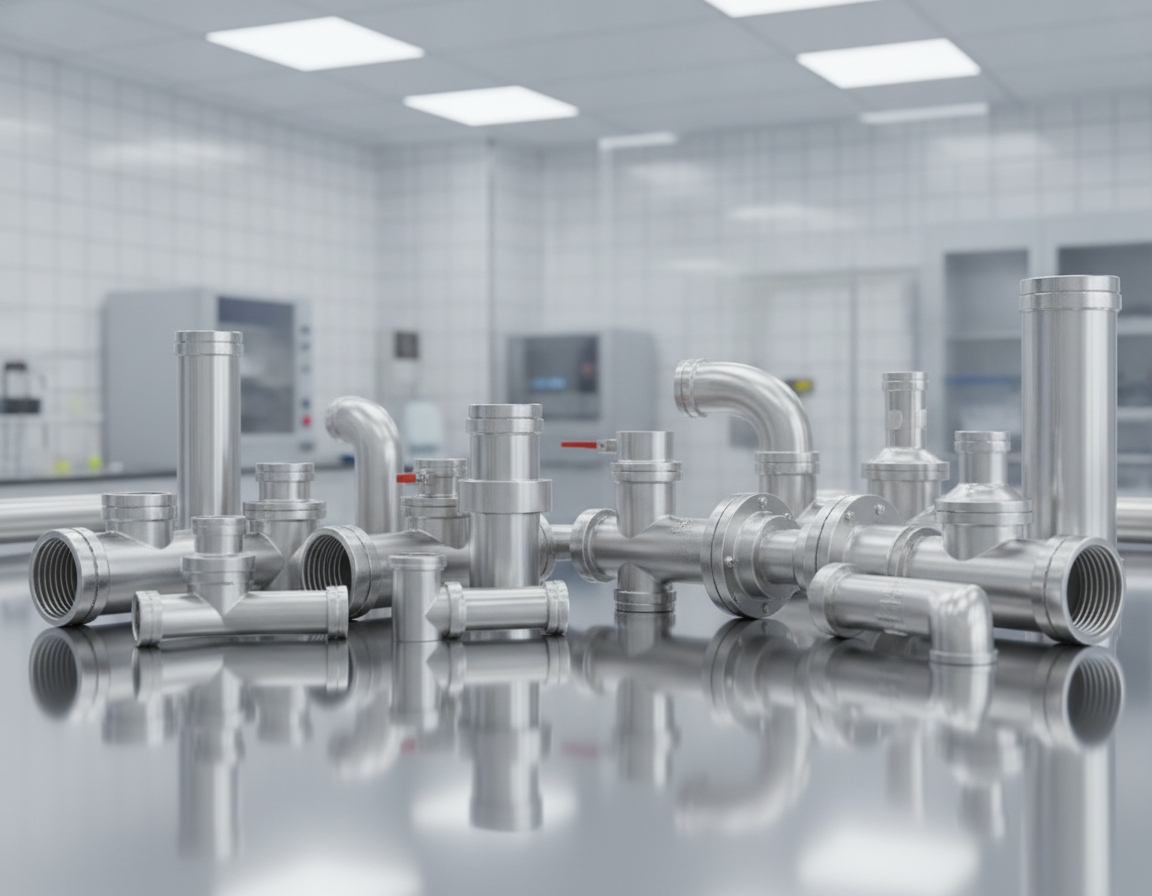

Stainless steel sanitary pipe fittings are critical in maintaining contamination-controlled systems across multiple industries. These components, including ferrules, clamps, sanitary valves, and fittings, are built to keep fluid paths clean. They minimize contamination risk while making cleaning, inspection, and maintenance easier.
Tri-Clamp Fittings Catalog
Selecting the right Hygienic Fittings and Ss Sanitary Fittings shapes product safety, uptime, and regulatory compliance. Material grade, surface finish, and connection compatibility are major selection factors. They determine the ease with which a system can be validated and maintained.
Operations teams need reliable suppliers and detailed catalogs when choosing the correct parts. Brands like CSI and distributors such as Installation Parts Supply supply essential information. Their catalog listings, lead times, and customer reviews can guide purchasing decisions for Sanitary Valves And Fittings.
Essential Takeaways
- Stainless Steel Sanitary Pipe Fittings support contamination control in clean process systems.
- Cleanability and corrosion resistance depend on material grade and surface finish.
- Compatible Hygienic Fittings minimize downtime during upgrades, changeovers, and maintenance.
- Supplier catalogs and reviews from CSI and Installation Parts Supply help with reliable sourcing.
- Proper selection of Sanitary Valves And Fittings improves regulatory compliance and product quality.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Clean-process systems depend on components made for hygiene, safety, and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features limit contamination and support clean-in-place and sterilize-in-place procedures.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are built to create crevice-free connections. This reduces bacterial growth, maintaining product purity during transfer and processing. Their design supports faster cleaning while reducing cross-contamination risk.
Where Hygienic Fittings Are Used
Food processors use hygienic fittings to maintain safety standards and reduce spoilage risk. Beverage manufacturers use them to protect flavor and shelf life. Pharmaceutical facilities choose fittings that meet high-level regulatory and validation requirements.
Biotech facilities need precise sanitary connections for fermentation, cell culture, and bioprocessing. These industries value traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Is Preferred For Sanitary Applications
Stainless steel is favored for its corrosion resistance, mechanical strength, and cleanability. Grades like 304 and 316L withstand chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components help prevent bacterial growth and extend service life under aggressive cleaning. Tri Clover Sanitary Fittings and other standardized interfaces streamline the assembly and maintenance of robust hygienic systems.
Stainless Steel Sanitary Pipe Fittings Explained
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are essential. The right material, product type, and surface finish are critical to reducing contamination risk and making cleaning easier. This section covers common stainless grades, component families, and surface finish options for hygienic performance.
Sanitary Stainless Steel Materials And Grades
Type 304 stainless steel is recognized for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L provides better resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching grades across components helps maintain corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L early in design streamlines procurement of SS Sanitary Fittings and related parts.
Sanitary Fitting Product Types And Functions
Ferrules function as the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, known as Tri-Clamp or Tri-Clover style, support quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings limits downtime and leak risks.
Why Surface Finish Matters For Cleanability
Surface roughness directly controls how residues cling to metal surfaces. A 32RA internal finish is a common specification that balances cost, cleanability, and food/beverage performance.
Electropolishing further smooths the metal and enhances passivity. This treatment reduces microbial harborage and boosts corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is simpler.
| Part | Common Material | Standard Finish | Primary Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 / 316L stainless | 32RA ID and OD finish | Welded transitions, pipe ends |
| Two-piece clamps Tri-Clamp | 316L for demanding use | Polished or electropolished finish | Quick-release sanitary connections |
| Couplings and weld fittings | 304 / 316L | Standard 32RA or electropolished | Permanent joins, elbows, tees |
| Sanitary flexible-line fittings | 316L often specified | Electropolished for product contact | Flexible connections, transfer lines |
| Hygienic valves and fittings | 316L on wetted surfaces | Smooth polished flow paths | Cleanable flow control in process lines |
Tri Clover Fittings, Tri-Clamp Fittings Catalog, And Triclover Fitting Options
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. DIN 32676 and DIN 11864-3A dictate ferrule face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This ensures the correct part is chosen at the time of order.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps feature a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material impacts both longevity and cleaning performance. 316L ferrules provide superior resistance to chlorides in harsh environments. Ensure the Tri-Clamp Fittings Catalog lists both ferrule metallurgy and clamp construction. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should list clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog makes Triclover Fittings replacement faster and helps minimize downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
CSI Sanitary Fittings Compatibility And Sanitary Connections
Sanitary connections are vital for linking pipes, valves, and equipment in clean systems. The correct joint type is important for maintaining cleanability, efficiency, and reliability. This section explains common connection styles, brand interchangeability, and supplier reliability feedback.
There are multiple connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own strengths and limitations regarding assembly speed, cleanability, and leak risk.
Clamp connections are known for their quick assembly and ease of disassembly for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings align with common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien provides spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To confirm compatibility, match the nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can cause corrosion or trap product residues.
Customer feedback offers practical insights into supplier reliability. Reviews for CSI often mention consistent part quality and fast shipping, with some buyers reporting next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When evaluating suppliers, consider lead times, documented quality, and after-sale support. Reliable shipping and clear specification sheets help reduce downtime and avoid costly returns when buying Sanitary Connections, CSI Sanitary Fittings, or Steel & O’Brien components.
| Sanitary Connection | Recommended Application | Cleaning Performance | Cross-Brand Notes |
|---|---|---|---|
| Tri-Clamp clamp connection | Lines requiring fast access for cleaning | High; gasketed seal easy to clean | High if size and sealing face match; CSI fittings usually fit standard systems |
| Welded sanitary connections | Fixed sanitary piping where cleanability is critical | Very high when welded and polished correctly | Standardized dimensions ensure cross-brand fit for ferrules and couplings |
| Threaded fitting connection | Low-risk applications away from product contact | Lower cleanability where threads contact process fluids | Use carefully and confirm grade, thread style, and finish |
| Flexible hose with sanitary ferrule | Flexible runs and transfer lines | Good if ferrule and clamp are matched | Compatibility depends on ferrule shape, gasket, and clamp match |
Selection Guide For Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Choosing the right sanitary components involves a few focused steps. This guide supports you match size, material, and finish to your process needs. Use the metrics and checks below to limit downtime and ensure hygienic performance.
Start with size, designation, and connection standard. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is critical. For routine food and beverage lines, 304 satisfies strength and cleanability needs. For pharmaceutical or chloride-exposed processes, choose 316L for superior corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-sections and clamp pressure to avoid leaks.
Assess pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure applications require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review catalog pressure ratings and choose clamps rated above operating pressure to provide a safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final checks reduce costs. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Installation, Maintenance, And Best Practices For Sanitary Coupling And Sanitary Weld Fittings
Ensuring the cleanliness and reliability of sanitary connections is vital. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Best-practice assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with brass nuts and adhere to the recommended torque to prevent over-compression.
Guidance for Sanitary Weld Fittings
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect weld contour, internal profile, and surface smoothness. If needed, rework rough spots through controlled grinding and electropolishing to restore low roughness and maintain hygiene.
Routine Sanitary Maintenance
Run CIP and SIP cycles according to process requirements. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Troubleshooting frequent sanitary fitting issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can cause uneven compression and leaks. To correct this, loosen the assembly, realign it, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pitting, or crevice corrosion can hold microorganisms. Minor scratches may be polished out and electropolished to restore the required Ra level. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and maintenance records
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records help with regulatory compliance and expedite troubleshooting efforts.
| Maintenance Task | Interval | Key Action | Notes |
|---|---|---|---|
| Clamp torque verification | After assembly, then monthly | Use calibrated torque tools | Use manufacturer torque table for Sanitary Coupling sizes |
| Gasket inspection/replacement | Every 3 to 12 months or when failure occurs | Check for cuts, hardening, swelling, or extrusion | Replace with matching material and durometer |
| Ra and surface condition check | After weld work and during quarterly checks | Measure Ra, inspect visually | Electropolish if Ra exceeds spec for hygienic areas |
| Weld profile inspection | After installation and during annual review | Inspect for undercut, porosity, profile | Repair, polish, and revalidate Sanitary Weld Fittings as required |
| CIP/SIP validation | Each process cycle | Record process parameters during each cycle | Document results for validation and regulatory review |
Buying Sanitary Fittings From Catalogs, CSI, And Installation Parts Supply
Starting with a detailed catalogue review is important. Look for a Sanitary Fittings Catalog that shows material grade, finish, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, focus on clamp type, gasket compatibility, and dimensional specs. Check if ferrules and fittings have surface finishes like 32RA or electropolished. A detailed catalog makes matching gaskets and clamps easier during assembly.
Evaluate Csi Fittings by reading independent reviews, checking supplier lead times, and comparing published specifications. Many buyers report fast shipping for common parts and responsive service for quality or order questions. Confirm return terms for precision components to protect tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Item | Listed Size | Material | Finish | Catalog Price USD |
|---|---|---|---|---|
| Two-piece single-pin sanitary clamp | 0.25″–0.75″ | Type 304 stainless steel | Standard catalog finish | Approx. $3.91 |
| Single-pin two-piece clamp | One-inch size | 304 | Standard | Approx. $4.91 |
| Single-pin two-piece clamp | 2 inch | 304 stainless | Standard | $5.99 |
| Two-piece single-pin clamp | Two-and-a-half-inch size | 304 stainless | Standard | Approx. $6.93 |
| Two-piece single-pin sanitary clamp | 3 inch | 304 stainless | Standard finish | 7.54 USD |
| Two-piece single-pin sanitary clamp | Four-inch size | 304 | Standard catalog finish | 9.16 USD |
| TC sanitary ferrule | 2 inch with 1.125 inch OAL | Type 316L stainless steel | 32RA ID/OD | Approx. $4.24 |
| TC sanitary ferrule | 2″ — 1.125″ OAL | Type 304 stainless steel | 32RA ID and OD | Approx. $4.06 |
| Tri-Clamp ferrule | 3″ | 316L stainless | 32RA ID/OD | $6.15 |
| Double-bolt high-pressure clamp | One-and-a-half-inch size | 316 | Polished finish | 12.93 USD |
| Double-bolt high-pressure clamp | Two-inch size | 316 | Polished sanitary finish | 14.62 USD |
| High-pressure double-bolt clamp | Three-inch size | 316 stainless | Polished finish | Approx. $20.26 |
Installation Parts Supply is a U.S.-based source for sanitary valves, ferrules, and clamps. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Sanitary Pipe Fittings Summary
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in various industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, enhances cleanability. This lowers contamination risks significantly. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is vital for tight Sanitary Connections and easy interchangeability.
When selecting fittings, review the material, finish, and connection type. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. High-pressure clamps should be used where necessary. Consistency in gaskets, clamps, and ferrules limits leaks and simplifies maintenance. Proper installation and regular cleaning extend fitting life and support compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When searching for where to buy sanitary fittings, prioritize reputable U.S. suppliers. They should list product specifications, finishes, and standards to ensure compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and trusted sources minimize downtime. This supports product quality in hygienic processing environments.
